Model 841A Series Test Jack Isolator Paddles

Model 841A Series Test Jack Isolator Paddles

Allows safe access to current when using ABB/Westinghouse™, GE™ FT, Superior™, Meter Devices™, States™, or compatible series test jacks.



Test Leads Data Sheet
Download (255 kB) »

Isolator Paddles Data Sheet
Download PDF(598 kB) »

Insert this orange thermoplastic isolator into a series test jack (ABB/Westinghouse™, GE™ FT, Superior™, Meter Devices™, and States™) to isolate the two blades of the jack for testing. Bright orange color for high visibility, even in poor lighting.

  • Bright orange (PMS 021) color for high visibility, even in poor lighting.
  • Tough acetal resin has low coefficient of friction for easy use.
  • Has a 5 mm (0.197 in) hole on the end for a key chain or cord.

Order Numbers:

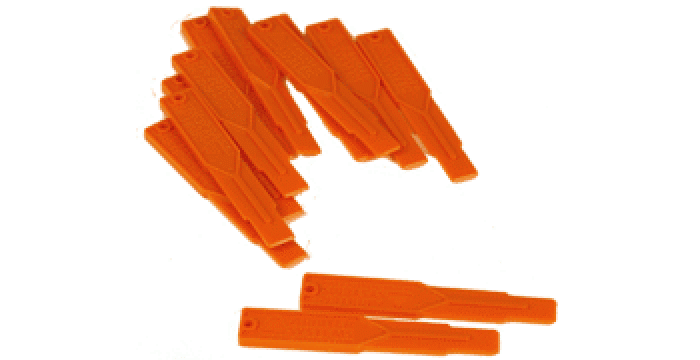

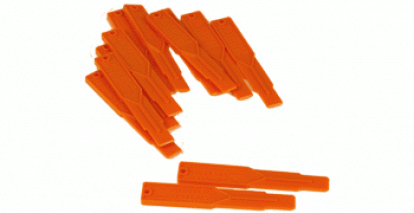

Model 841A = a single bag of 12 individual isolator paddles
Model 841B = a single bag of bulk individual isolator paddles. Minimum order quantity is 100 individual isolators. Contact factory for the quantity discount schedule.

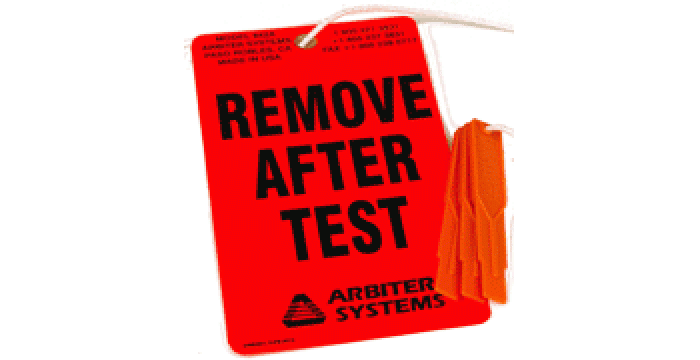

Model 842A = a set of three isolator paddles bound together by a 60 cm (24 in) nylon cord and a DayGlo orange REMOVE AFTER TEST placard.

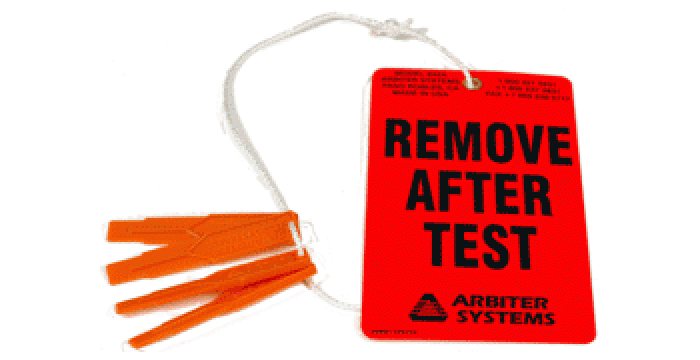

Model 842B = a set of four isolator paddles bound together by a 60 cm (24 in) nylon cord and a DayGlo orange REMOVE AFTER TEST placard.

Length

  • Total Length =  89 mm (3.5 in)
  • Insertion Length = 40 mm (1.6 in)
  • Width = 13.5 mm (0.5 in)
  • Blade Thickness = 1.6 mm (0.06 in)
  • Handle/Guide Thickness = 4 mm (0.16 in)

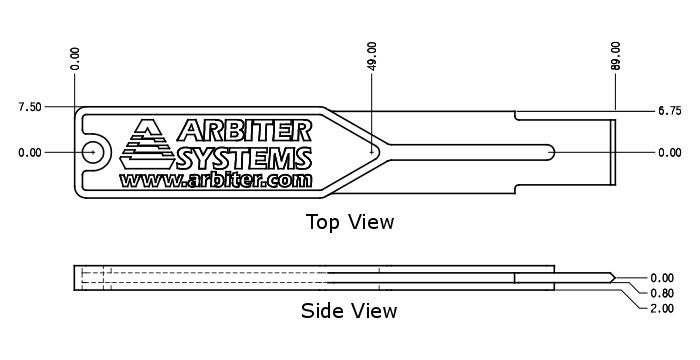

Click on images above to view a drawing.

There are no additional Options available for this product.
There are no additional Accessories available for this product.
