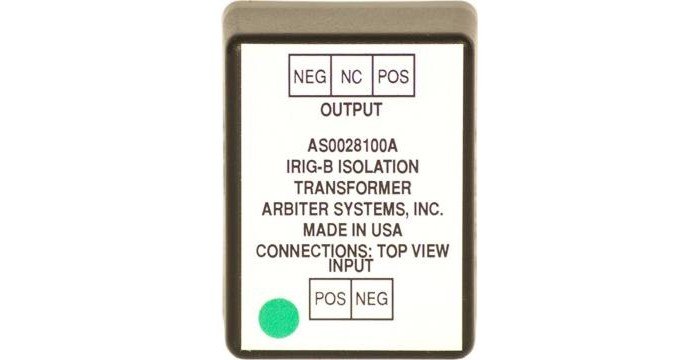

AS0028100 600 Ohm IRIG-B Isolation Transformer

AS0028100 600 Ohm IRIG-B Isolation Transformer

The AS0028100 and AS0028101 isolate the source of the modulated IRIG-B from the end device.



The AS0028100 and AS0028101 are not really part of the Copper IRIG-B Distribution System but they are derived from the Model 10882 IRIG-B Distribution Tap. They work with modulated IRIG-B and isolates the source from the end device. The source impedance is approximately 600 ohms, and they provide an open-circuit signal level of 6.4 Vpp to 11 Vpp, depending on overall system loading and distance from the clock mainframe. Each tap provides 3750 Vrms isolation from the distribution bus to the load, as well as surge suppression and EMI filtering.

  • Can be used with any Arbiter GPS satellite controlled clock
  • Can be used with DIN Rail mounting brackets

Ordering checklist:

  • AS0028100 standard without DIN Rail Mounting

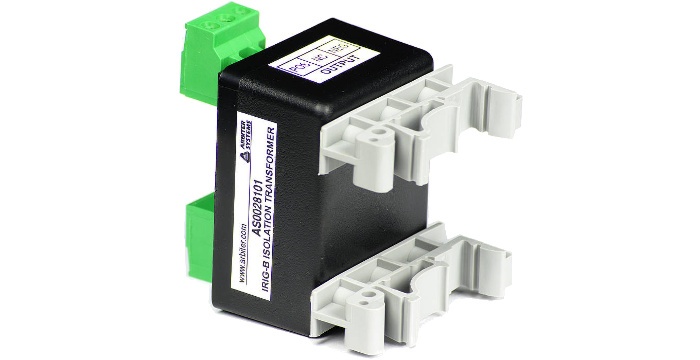

  • AS0028101 includes DIN Rail Mounting

I/O Configuration

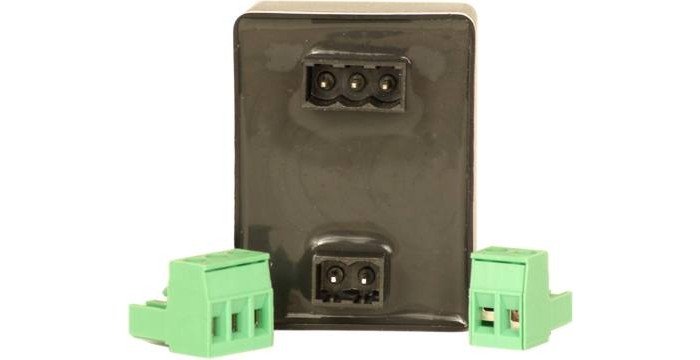

Output Connectors

  • 3-position pluggable terminal.
  • (5-mm centers) with removable screw-clamp terminal block, accepting 0.2 mm2 to 4 mm2 (AWG 24 to AWG 10) solid or stranded conductors.

Output Signals

  • Designed for modulated IRIG-B.
  • 6.4 Vpp to 11 Vpp, open circuit; 3.2 Vpp to 5.5 Vpp, into 600-ohm load

Input Connectors

  • Source Impedance: 600 ohms
  • Isolation: 3750 Vrms from distribution bus to load.
  • 2-position pluggable terminal. (5-mm centers) with removable screw-clamp terminal block, accepting 0.2 mm2 to 4 mm2 (AWG 24 to AWG 10) solid or stranded conductors.

Input Signals

Designed for modulated IRIG-B

Power Requirements

 Not required.

General

Physical

Size

52 mm x 39 mm x 45 mm (2.0 in x1.5 in x 1.8 in) overall height including pluggable terminal connectors - without DIN rail.

52 mm x 39 mm x 58 mm (2.0 in x 1.5 in x 2.3 in) overall height including DIN rail and pluggable terminal connectors.

Weight

94 g (3.30 oz) with pluggable terminal connectors and without DIN rail mounts

Environmental

Humidity: noncondensing

Temperature

Operating: - 10 °C to + 50 °C

Nonoperating: - 40 °C to + 75 °C

There are no additional Options available for this product.
Available
AP0003400 1 BNC (Male) Breakout to 100 mm Wires
AP0008900 1 BNC (Female) Breakout to 100 mm Wires
AP0014900 2 BNC (Male) Breakout to Screw Terminal
AP0015000 2 BNC (Female) Breakout to Screw Terminal

1 Converts pair of wires to BNC.
2 Note: The gender designation is not the same as our other BNC Breakout offering. The manufacturer of this breakout does not follow traditional naming conventions.

Distributing Timing Signals in a High-EMI Environment
Download application_note_101.pdf (68 kB) »
